Bàn Switch SE-1200MU (Datavideo)
Thông tin thiết bị
Mã sản phẩm:
Hãng sản xuất:
Bàn video switcher HD 6 ngõ vào (4xSDI và 2xHDMI)
Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.
SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

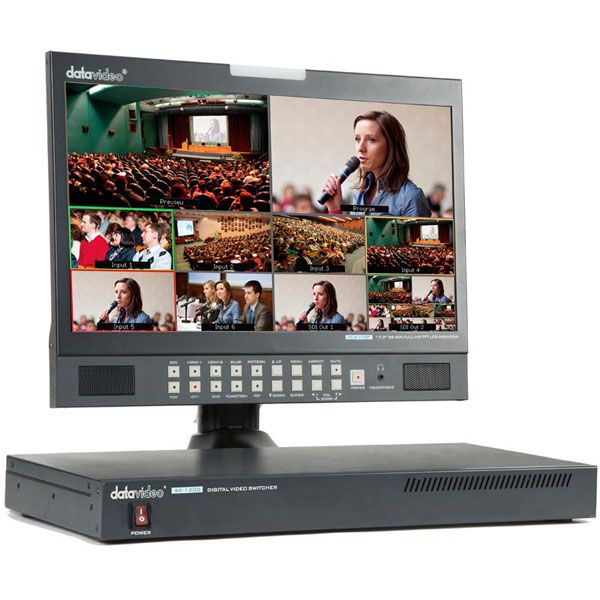

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC with the included SE-1200 software control panel, or the RMC-260 control panel.
SE-1200MU includes four SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.

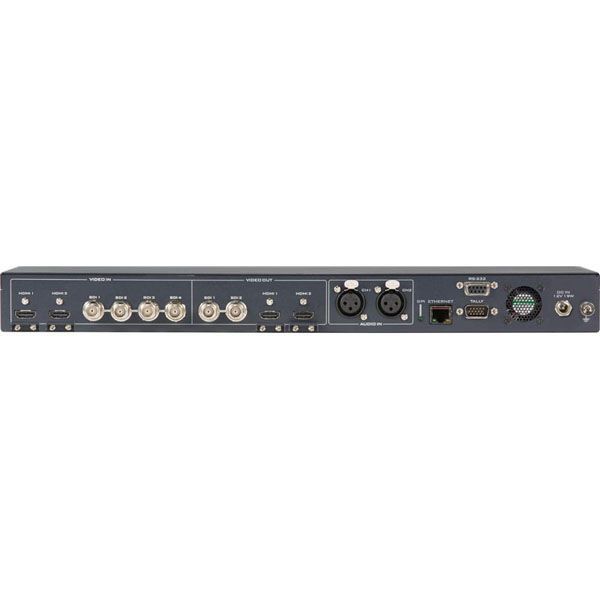

Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.
Users have the option to link a laptop to the switcher unit via USB, for a fast, secure connection. This gives plug and play control over all the functions of the mixer, with no need to configure the computer's IP or network settings.
Thông số kỹ thuật
- 6 video inputs ( SDI x 4 + HDMI x 2)
+ Frame Sync on each input
- Flexible Mix/Effects Processor with
+ 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
+ 2 DSK, supporting Linear & Luma Key Modes
+ 1 PIP (assignable to any of the 4 keyers
+ Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
+ Wipe, Mix & Cut Transitions
+ Full M/E Preview function
- Any Input (1-6) can be used as a Frame store
- Assignable Outputs
+ Each SDI output can be switched in the Menu as:
- PROGRAM (w/ DSK)
- Clean PROGRAM (w/o DSK)
- Clean PREVIEW (w/o DSK)
- MULTISCREEN
- Input 1-6
-XPT (Cross Point Assignment)
- PC control
- Control Switcher via USB / Laptop keyboard
- RMC-260 optional - SE-1200MU Digital Video Switcher remote controller
-Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
- Tally output
- GPI output
- 1U rack mount
