ĐÈN LED Arri L7-C

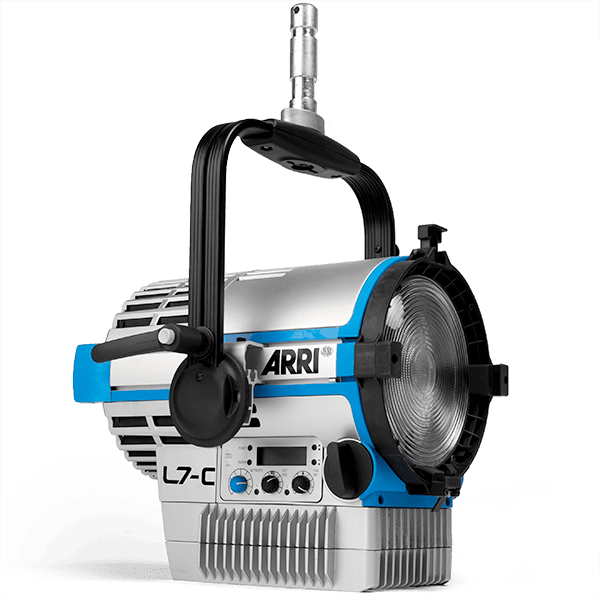

Đèn LED Fresnel màu Bạc / Xanh lam, Gắn bằng tay L7-C LE2 là một phần trong nỗ lực không ngừng của ARRI nhằm thay thế các Fresnel truyền thống bằng các phiên bản LED mạnh mẽ cung cấp khả năng kiểm soát màu sắc chưa từng có. L7-C LE2 chia sẻ nhiều đặc điểm với người tiền nhiệm của nó, nhưng cải tiến rõ ràng nhất là công suất tăng 25%, tăng tương đương vonfram của ánh sáng từ 750W lên 1000W. Phiên bản giá đỡ / lắp bằng tay này có một chạc với chốt Junior 1-1 / 8 ".




Series | L - Series |
Model | L7-C |
Optical System | Focusable Fresnel |
Light Aperture / Lens Diameter in mm | 175 mm |
Light Aperture / Lens Diameter in inch | 7" |
Beam Angle | 15° to 50° Half Peak Angle |
Weight in kg net | Manual Version: approx. 8.2 kg |
Weight in kg packed | Manual Version: approx. 14 kg |
Weight in lbs. net | Manual Version: approx. 18.1 lbs |
Weight in lbs. Packed | Manual Version: approx. 31 lbs |
Measurements (HxWxL) incl. Pin in mm | Manual Version: 571 x 374 x 351 mm |
Measurements (HxWxL) excl. Pin in mm | Manual Version: 438 x 374 x 351 mm |
Measurements (HxWxL) incl. Pin in inch | Manual Version: 22.5 x 14.7 x 13.8" |
Measurements (HxWxL) excl. Pin in inch | Manual Version: 17.2 x 14.7 x 13.8" |
Measurements (HxWxL) Packed size in mm | 540 x 500 x 380 mm |
Measurements (HxWxL) Packed size in inch | 21.3 x 19.7 x 15.0" |
Handling | Adjustable Sliding Stirrup, High-Strength Tilt Lock / Pole Operation Option (Pan, Tilt and Focus) |
Mounting | 28 mm Spigot (Junior Pin) |
Tilt Angle | +/- 90° |
Lamphead Voltage Input | 100 - 240 V ~, 50 - 60 Hz |
Power Consumption | 220 W Maximum |
Power Connection | powerCON TRUE1 (Bare Ends / Schuko / Edison) |
White Light | 2,800 K to 10,000 K continuously variable correlated color temperature |
Colored Light | Full RGB+W Color Gamut with Hue and Saturation Control |
Color Temperature Tolerance | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
Color Rendition | CRI Average > 94, TLCI Average > 90 |
Green-Magenta Adjustment | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
Dimming | 0 to 100 % continuous |

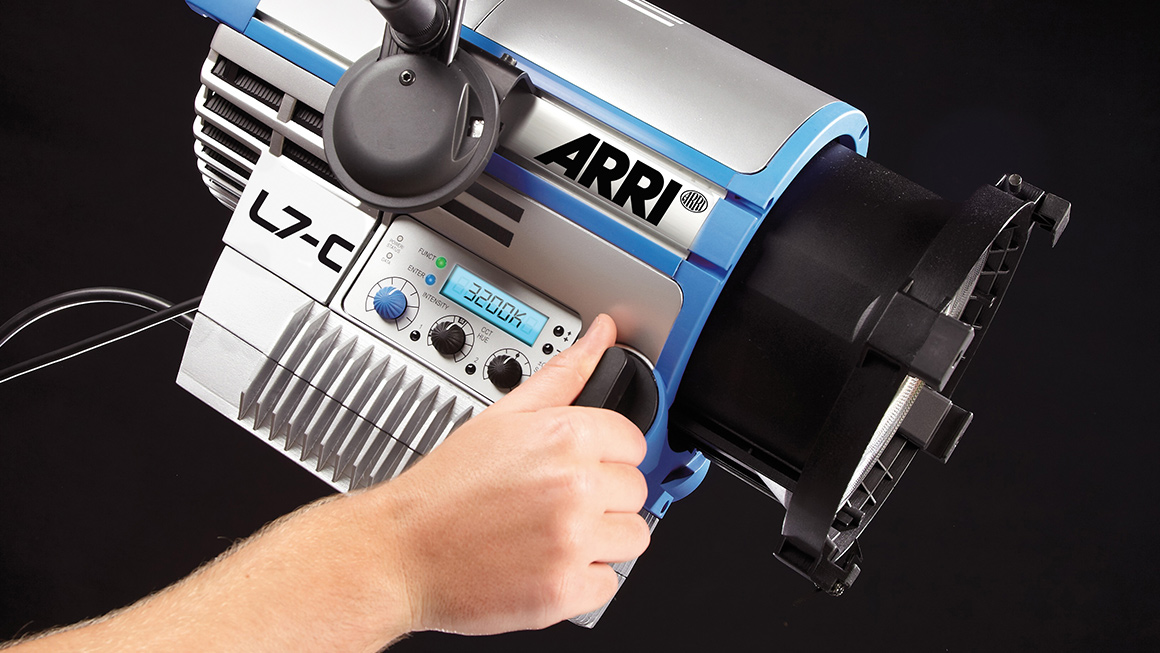

Control | 5-Pin DMX In and Through, On-Board Controller, Mini-USB |
Wireless Control | Not integrated, via SkyLink |
Remote Device Management (RDM) | DMX Setup, Hour Counter and Standard RDM Commands |
Software / Mini-USB Interface | DMX Setup, Fixture Status and Firmware Upgrade through PC |
Housing Color | Blue/Silver, Black |
Ambient Temperature Operation | -20 to +45° C (-4 to +113° F) |
Protection Class / IP Rating | I / IP20 |
Estimated LED Lifetime (L70) | 50,000 hours |
Estimated Color Shift Over Lifetime (CCT) | +/- 5 % |
Certifications | CE, CB, ENEC, cNRTLus, FCC, PSE |
