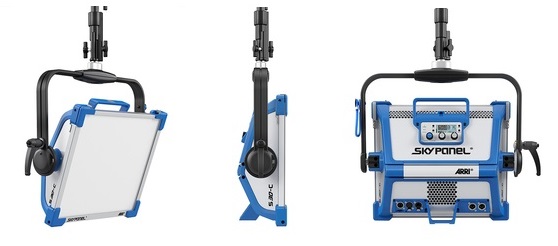

Đèn LED Arri SkyPanel S30-C
Đèn LED SkyPanel S30-C màu xanh lam / bạc. Được hỗ trợ bởi nhựa aluminium, diện tích bề mặt của bảng điều khiển có kích thước 14 x 11,8 ". Khiến nó trở thành nguồn sáng di động lý tưởng khi di chuyển cho các ứng dụng di động. Đầu ra được điều khiển thông qua bộ khuếch tán nhựa nhiệt dẻo có thể hoán đổi cho nhau có phạm vi từ Standard đến Lite đến Heavy đến làm dịu ánh sáng và bao bọc đầu ra của nó xung quanh chủ thể. Và SkyPanel S30-C cho đầu ra tương đương với ánh sáng mềm vonfram 1000W trong khi vẽ tối đa chỉ 240W.



Series | SkyPanel |
Model | S30-C |
Optical System | Soft Diffusion Panel |
Light Aperture / Lens Diameter in mm | 355 x 300 mm |
Light Aperture / Lens Diameter in inch | 14.0 x 11.8" |
Beam Angle | 105° (Half Peak Angle) |
Weight in kg net | Manual Version: approx. 7 kg |
Weight in kg packed | Manual Version: approx. 14 kg |
Weight in lbs. net | Manual Version: approx. 16.3 lbs |
Weight in lbs. Packed | Manual Version: approx. 31 lbs |
Measurements (HxWxL) incl. Pin in mm | Manual Version: 499 x 507 x 133 mm |
Measurements (HxWxL) excl. Pin in mm | Manual Version: 426 x 507 x 133 mm |
Measurements (HxWxL) incl. Pin in inch | Manual Version: 19.6 x 19.9 x 5.2" |
Measurements (HxWxL) excl. Pin in inch | Manual Version: 16.8 x 19.9 x 5.2" |
Measurements (HxWxL) Packed size in mm | 470 x 665 x 300 mm |
Measurements (HxWxL) Packed size in inch | 18.5 x 26.2 x 11.8" |
Handling | Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt |
Mounting | 16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo.Pin) / 28 mm Spigot (Junior Pin) |
Tilt Angle | +/- 90° |
Lamphead Voltage Input | 48 V DC |
Power Consumption | 200 W Maximum |
Lamphead Power Connection | Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive) |
Battery Connector | Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) |
Battery DC Voltage Range | 23 to 36 V DC |
Battery Mode Light Output | 100 % of total output |
White Light | 2,800 K to 10,000 K continuously variable correlated color temperature |
Colored Light | Full RGB+W Color Gamut with Hue and Saturation Control |
Color Temperature Tolerance | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
Color Rendition | CRI Average > 95, TLCI Average > 91 |
Green-Magenta Adjustment | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
Dimming | 0 to 100 % continuous |
Control | On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net |
Wireless Control | Not integrated, via SkyLink |
Remote Device Management (RDM) | DMX Setup, Hour Counter and Standard RDM Commands |
Software / Mini-USB Interface | Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive |
Housing Color | Blue/Silver, Black |
Ambient Temperature Operation | -20 to +45° C (-4 to +113° F) |
Protection Class / IP Rating | III / IP20 |
Estimated LED Lifetime (L70) | 50,000 hours |
Estimated Color Shift Over Lifetime (CCT) | +/- 5 % |
Certifications | CE, CB, ENEC, cNRTLus, FCC, PSE |
Detail: https://www.arri.com/en/lighting/led/skypanel/s30-c#F0.000S30C
