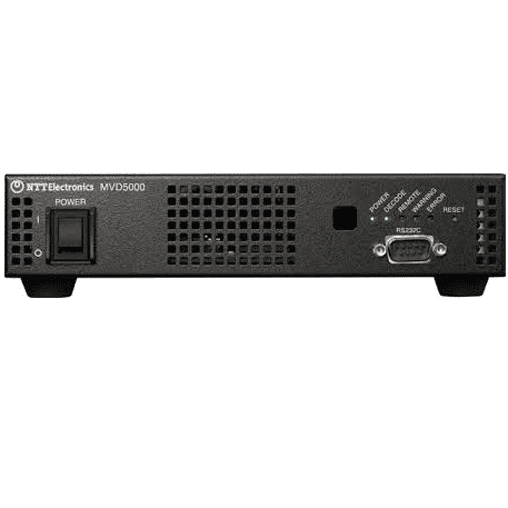

H.264/AVC Compact IP Decoder
Thông tin thiết bị
Mã sản phẩm:
Hãng sản xuất:
Chất lượng hình ảnh cao, Độ trễ siêu thấp và Tốc độ bit thấp với kích thước Half-Rack 1U để truyền IP
- NTT Electronics' High Performance In-House Single Chip LSI
- Inherits the high picture quality cultivated by contribution applications
- Multiple Interface
- Video I/O: HD/SD-SDI, HDMI, Analog Composite (Analog Model)
- Audio I/O: SDI embedded Audio, HDMI embedded Audio, Analog (Analog Model)
- Stream I/O: IP (100Base-TX/1000Base-T), DVB-ASI (ASI Model)
- Seamless Protection Switching for IP input (optional *13 )
- Network Function
- Simultaneous outputs for redundancy (Encoder)
- Supports IPv4/v6, FEC, ARQ which enables high quality video transmission using IP network
- Supports elemental stream (ES) over IP from Network Camera directly ** (optional *15 )
- Compact 1U Half-rack
- TS Pass Through (optional *12 )
- Quick Boot up
- RoHS Compliant
Option Table (MVD5000 (Decoder)) (Software Options)
Suffix | Option Name | Description | |
*8 | MVD5000_OP_AAC | MPEG-2 AAC-LC(2ch x 1, 5.1ch x 1) | |
*9 | MVD5000_OP_MPEG2 | MPEG-2 Decode(4:2:0) | |
*10 | Basic Pack | Operation parameter +8 preset, SMPTE302M(2ch), Dolby E Pass through, Web GUI lightweight operating mode, Syslog | |
| *11 | MVD5000_OP_PACK_SAP | Session Announcement Protocol(SAP) |
*12 | MVD5000_OP_PACK_TS-PASS | TS Pass Through | |
*13 | MVD5000_OP_PACK_SEAMLESS | Seamless Protection, Stream Switch | |
*14 | MVD5000_OP_PACK_MPEG2-PS | MPEG-2 PS(IP only) | |
*15 | MVD5000_OP_PACK_ES | ES over IP from Network Camera Receiving | |
(Note 1) Basic Pack (*10) is included in *11, *12, *13, *14, *15.
(Note 2) *15 For supported Network Cameras, please contact us via the Inquiry Form.
Xem thêm: https://www.ntt-electronics.com/en/products/video/codec_system_solutions/mv5000/index.html
