MONITOR 17”

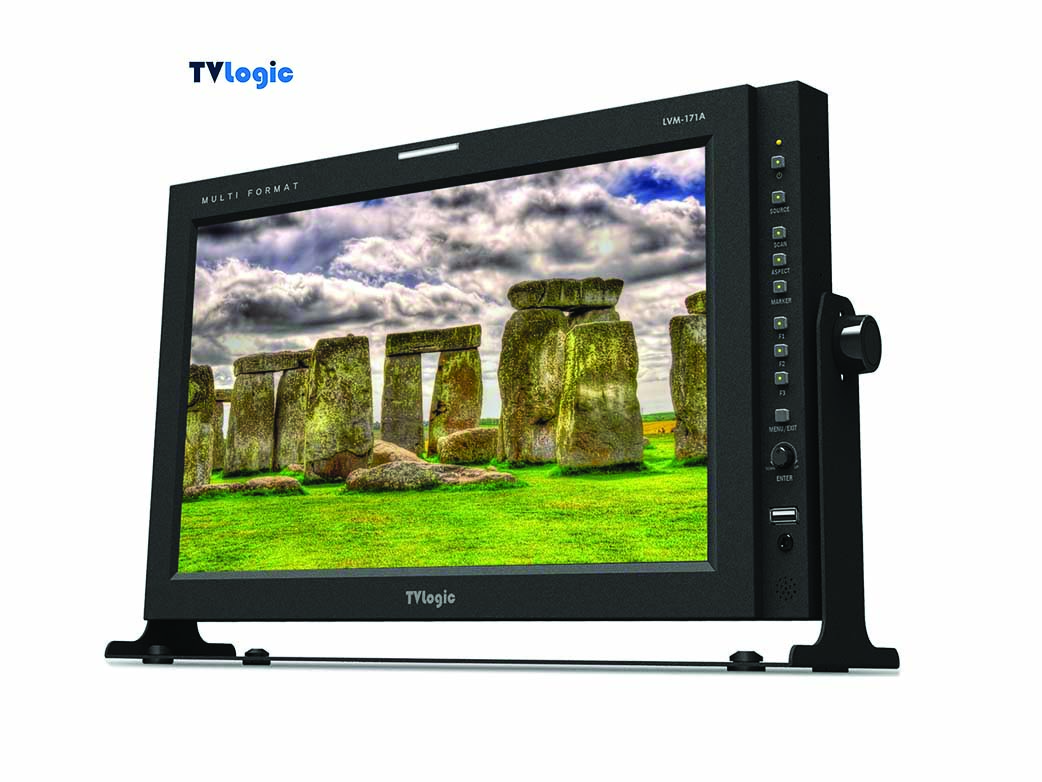

LVM-171A : A multi-purpose 17” Full HD Monitor
Thiết bị này có màn hình LCD tỷ lệ khung hình 16:9 thực với độ phân giải 1920x1080 và hiệu suất xử lý video 10 bit cho phép tái tạo màu trung thực và hiệu suất chia tỷ lệ video.
Thông số kỹ thuật
Display Spec
Size | 16.5" |
Resolution | 1920 X 1080 (16 : 9) |
Pixel Pitch | 0.1905mm |
Color Depth | 1.07B |
Viewing Angle | 178°(H) / 178°(V) |
Luminance | 450cd/m2 |
Contrast Ratio | 1500:1 |
Display Area | 366(H) x 206(V) mm |

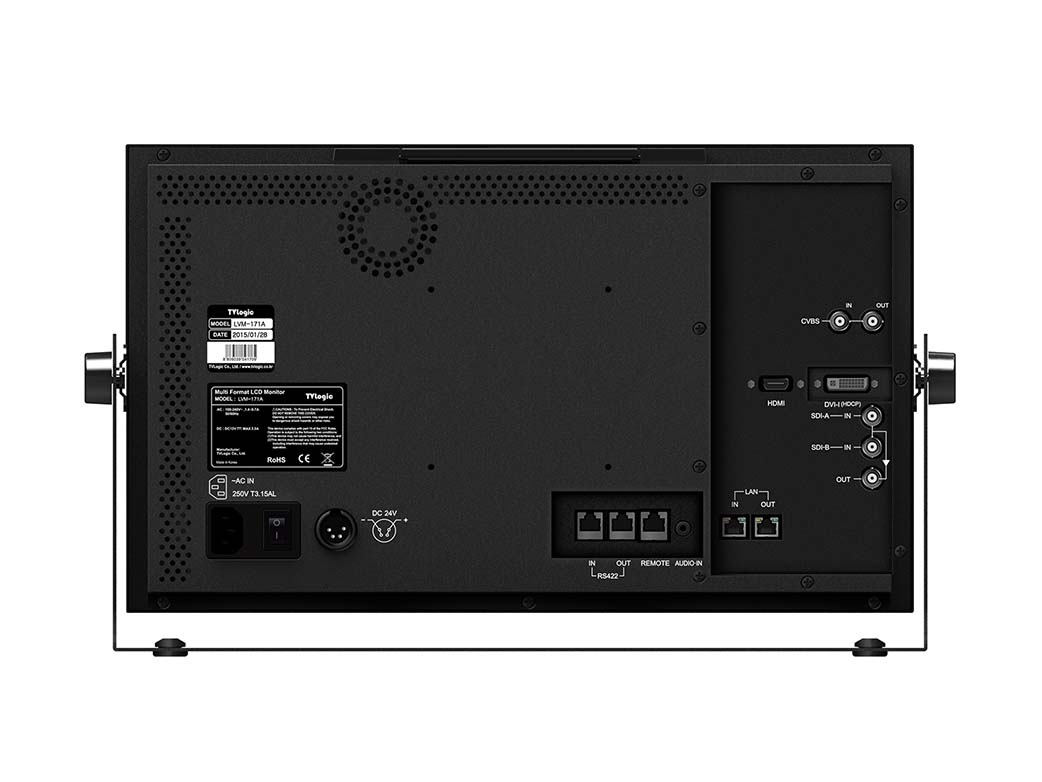

Input
1 X BNC | Analog Input (Composite) |
2 X BNC | 3G-SDI A/B Channel Input |
1 X HDMI | HDMI Input |
1 X DVI | DVI Input |
Output
1 X BNC | Analog Output (Composite) |
1 X BNC | 3G-SDI Output |
Input Signal
Analog | CVBS / S-Video / Component Video / RGB(D-TV) |
3G SDI | 2.970Gbps |
HD SDI | 1.485Gbps |
SD SDI | 270Mbps |
HDMI | 640x480/720x400/800x600/1024x768/1280x768/128 0x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50) |
DVI Analog | 640x480/720x400/800x600/1024x768/1280x1024/ 1366x768 |
DVI DP | 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50) |
SDI Input Signal Formats
SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) |
SMPTE 296 | 720p (60/59.94/50) |
SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
SMPTE 260 | 1035i (60/59.94) |
SMPTE 125 | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut. |
Closed Caption
CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
TVLogic Color Calibration Utility |
Other Functions
REMOTE | TVLogic’s specification |
USB | Firmware update by USB memory stick |
Ethernet | Ethernet Control support |
Options
Carrying Case, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), Sun Hood, V-Mount |
