MONITOR 17” 4K INPUT-READY

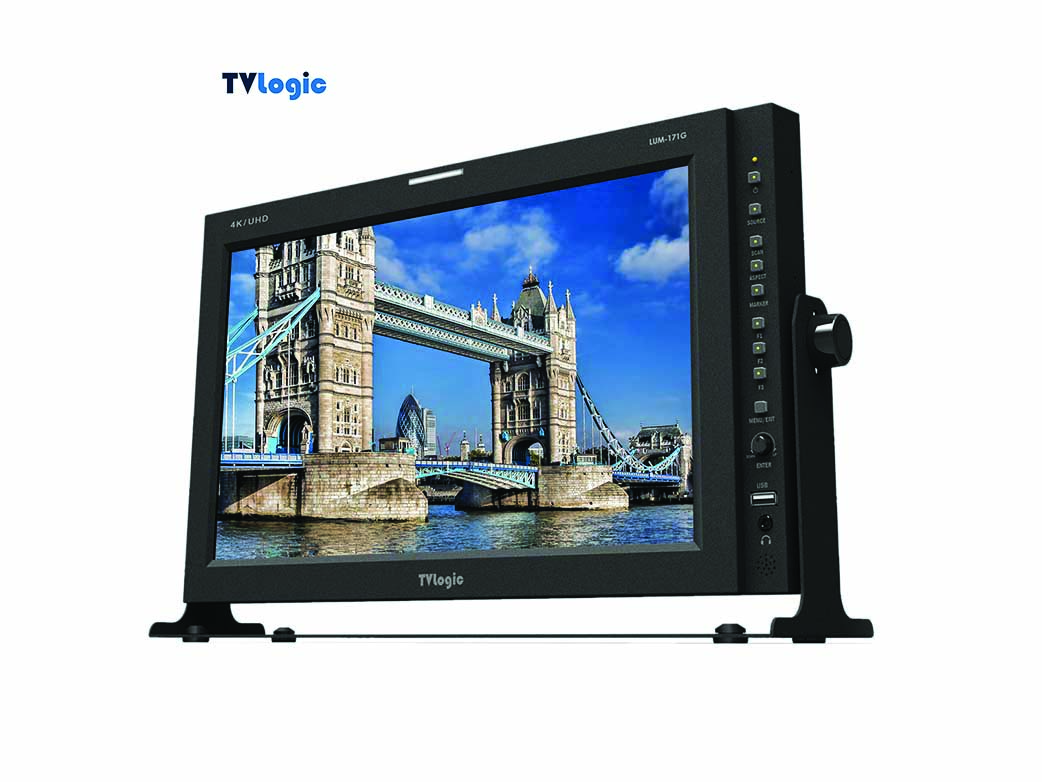

LUM-171G : 16.5” 4K Input-Ready Monitor
Màn hình LUM-171G mới hỗ trợ đầu vào 3G/6G/12G-SDI - 2×3G-SDI & 2×12G-SDI. LUM-171G kết hợp màn hình IPS LCD 1920 x 1080 gốc với hỗ trợ đầu vào SD/HD/UHD/4K cho các ứng dụng sản xuất tại hiện trường và giám sát linh hoạt nhất.
Thông số kỹ thuật
Display Spec
Size | 16.5" |
Resolution | 1920 X 1080 (16 : 9) |
Pixel Pitch | 0.1905mm |
Color Depth | 1.07B |
Viewing Angle | 178°(H) / 178°(V) |
Luminance | 450cd/m2 |
Contrast Ratio | 1,500:1 |
Display Area | 366(H) x 206(V) mm |

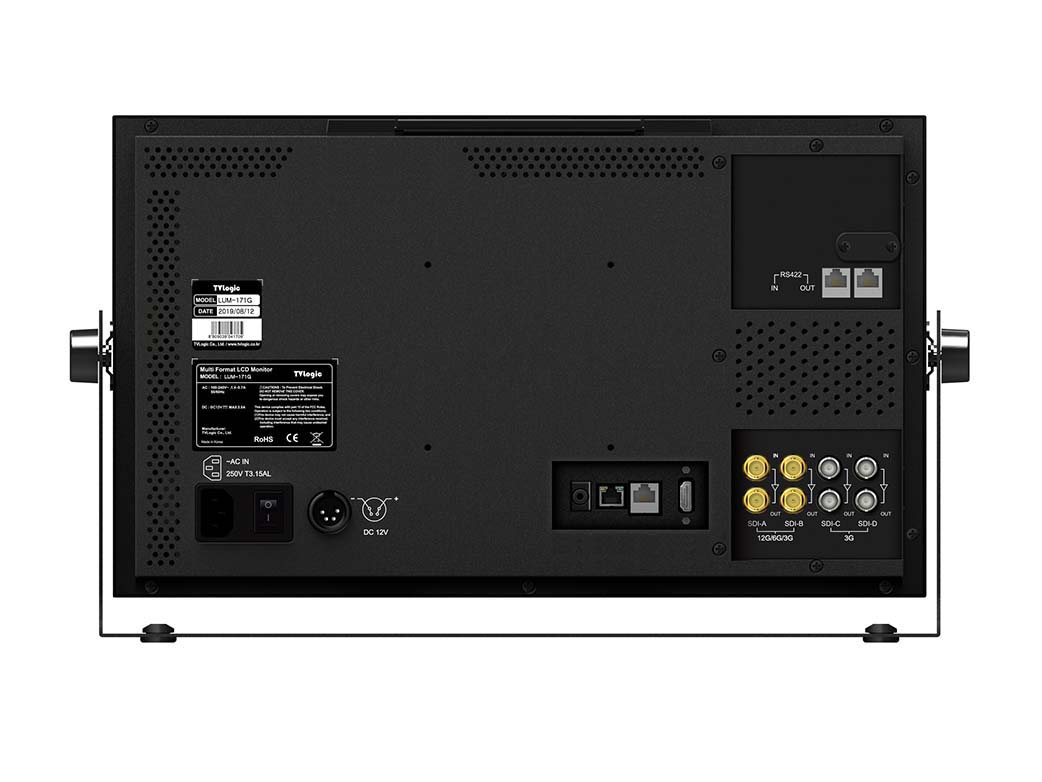

Input
4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
1 X HDMI | HDMI Input (HDMI 2.0) |
Output
4 X BNC | 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out) |
Input Signal
3G SDI | 2.974Gbps |
12G SDI | 11.880Gbps |
HD SDI | 1.489Gbps |
HDMI | 480p / 720p / 1080p / 2160p |
SDI Input Signal Formats
SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54) |
SMPTE 296 | 720p (60/59.94/54) |
SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF) |
SMPTE 260 | 47.95/48/50/59.94/60p) |
Audio
Audio In | Analog Stereo |
Audio Out | Analog Stereo (Phone Jack) |
FPGA Functions
Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Marker, Mono, Time Code Display, Waveform/Vector, SingleMode, Camera Lut. |
Closed Caption
CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma |
Other Functions
REMOTE | TVLogic’s specification |
USB | Firmware update by USB memory stick |
Ethernet | Ethernet Control support |
Options
Carrying Case, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), Sun Hood, V-Mount |
