SE-2200 (Datavideo)
Thông tin thiết bị
Mã sản phẩm:
Hãng sản xuất:
- 6 input HD broadcast quality switcher
- Ideal for live production venues, religious worship, meetings or conference purposes
- Inputs: 6 x HD-SDI, 2 x HDMI (CH 5 & 6)
- 6x6 SDI Genlocked Matrix, Dual PIP and a built-in title creator system that works with Datavideo CG systems, PowerPoint and other graphics programmes

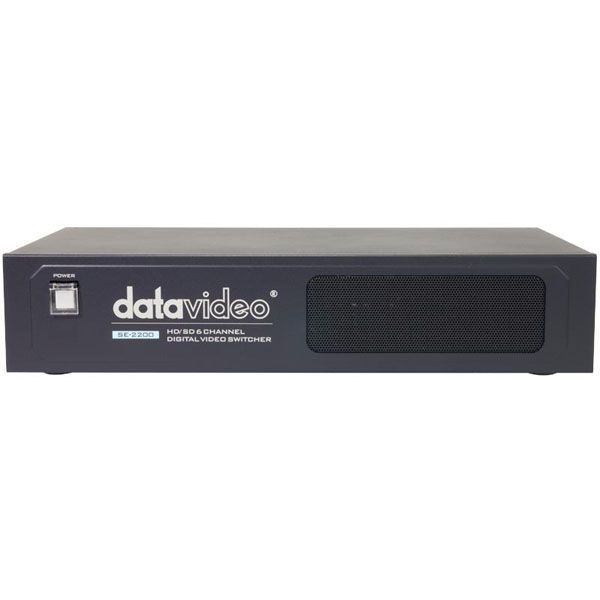

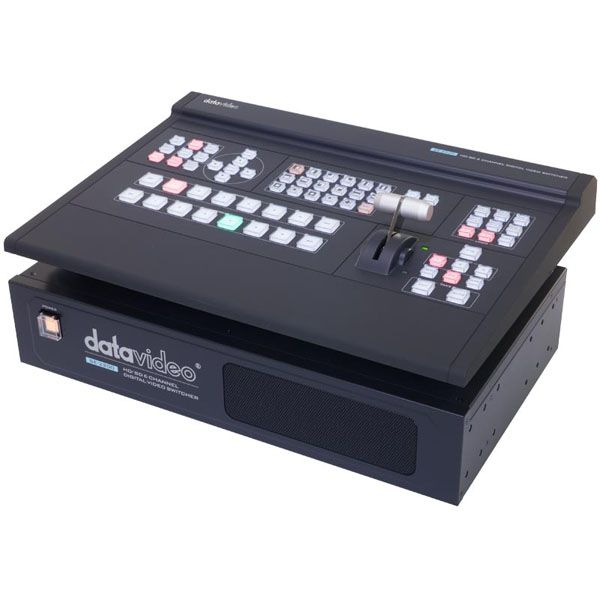

The SE-2200 6 input multi-definition switcher is perfect for live production, religious worship, meetings or conference purposes.
It is a technically smart and cost effective portable broadcast-quality switcher.
SE-2200 is a solution that comes with a great features such as 6x6 SDI genlocked Matrix, Dual PIP and built-in title overlay system that works with entry level Datavideo CG systems, or other graphics programmes.
SE-2200 consists of 6 HD-SDI video inputs or with a combination of 4 HD-SDI and 2 HDMI inputs; all of the inputs are reassignable, thus it is able to adapt to your needs. One of the HDMI inputs can be used to accept video from a PC/Laptop computer to work with built-in title overlay system such as Datavideo's CG solutions, including CG-200.
Thông số kỹ thuật

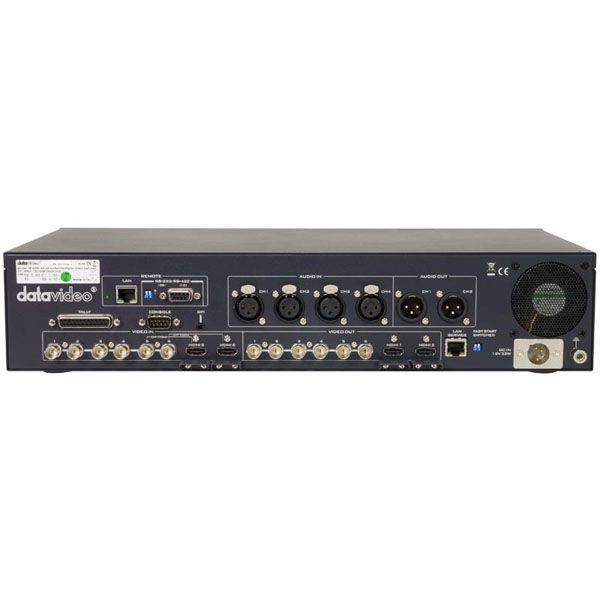

Total Video Inputs | Total 6 video inputs ( 6 SDI or 4 SDI + 2 HDMI ) |
Total Outputs | Total 6 SDI video outputs + 2 HDMI Multi view output |
Multi view Out | HDMI |
SDI Video Input | Max 6 |
HDMI Video Input | Max 2 |
Analog Audio Output | 2 mono ( 1 stereo) |
SDI Audio Output | SDI Embedded Audio |
Analog Audio Input | 4 mono (2 stereo) |
Internal Frame Synchronizers | 6 Frame Synchronizers |
PGM Out | Up to 6 |
Multi view Out | HDMI x 2 (HDMI multi-view outputs format is 1080i.) |
AUX output | up to 4 outputs |

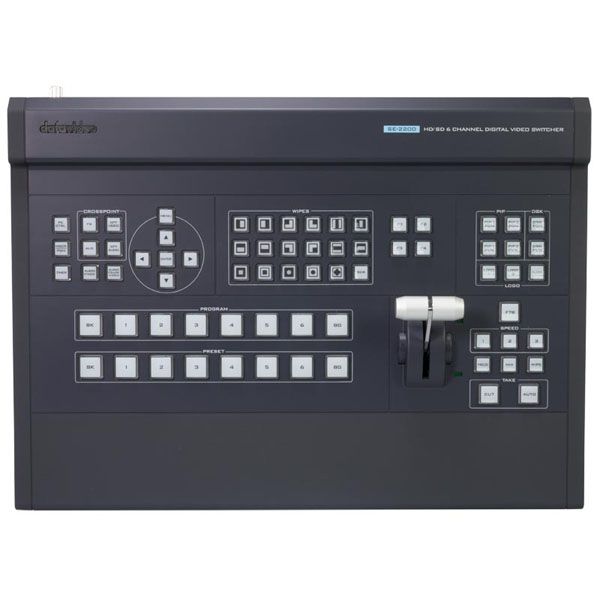

Control Panel Connection | RS-232 |
Tally Out | YES |
GPI | YES |
Software Updates | via Ethernet |
Standards | |
HD Format Support | 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60 |
Video Sampling | 4:2:2 10 bit |
Color Precision | 4:2:2 10 bit |
Color Space | SDI - YUV, HDMI - YUV / RGB |
HDMI Input Resolutions for Computers | HDMI 1920x1080i/50Hz HDMI 1920x1080i/60Hz HDMI 1920x1080i/59.94Hz HDMI 1280x720p/50Hz |
SDI Input Resolutions for Computers | 1920x1080i/50Hz,1920x1080i/60Hz,1920x1080i/59.94Hz |
Extras | |
Downstream Key | 1 |
Luma Key | 1 |
Color Generators | BARS, COLOR BG |
PIP | 2 |
XPT | YES |
Frame store | YES |
| Control Panel Compatibility | Use PC via Ethernet Control panel by RS-232 |
| Input Voltage | DC12V |
| Power consumption | 32W |
| DE-embedded audio sampling | 48KHz |
| S/N : analog, digital to analog | > -72dB |
Multi View Monitoring | |
Number of Windows | 2+6 (3 layout) |
Tally | YES |
Windows Source Labels | YES |
