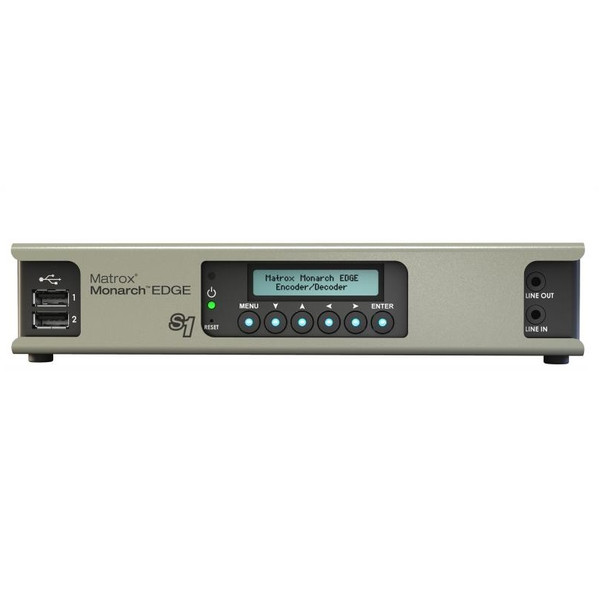

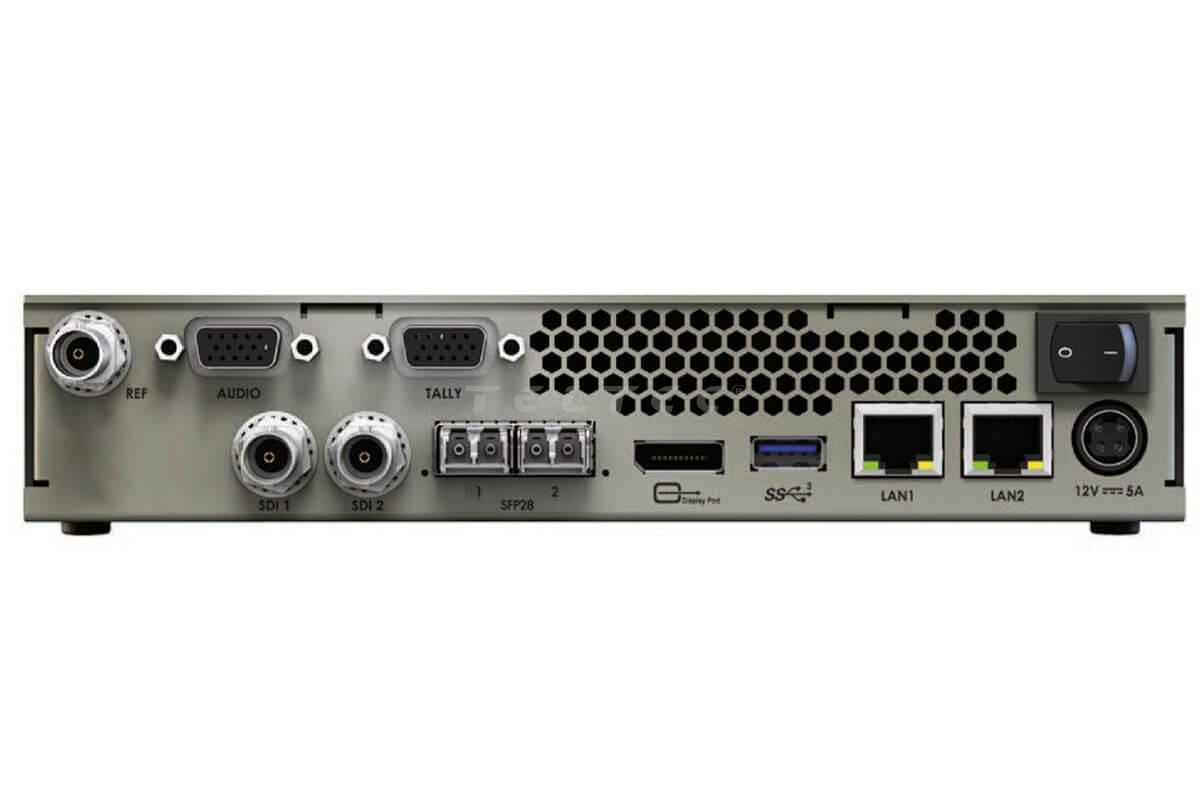

Thiết bị Encoder/Decoder

Thông số kỹ thuật

- Video Input: 1x 3G SDI input per ST 425 (Level A mapping only); 2x SFP 28 network ports (up to 25 Gbps)

- Video Output: 1x 3G SDI output per ST 425 (Level A mapping only); 2x SFP 28 network ports (up to 25 Gbps)

- Resolutions:

• 1080p at 23.98, 24, 25, 29.97, 30,  50, 59.94, 60 fps
• 1080i at 25, 29.97, 30 fps
• 720p at 50, 59.94, 60 fps

- Genlock: Bi-level or tri-level genlock input

- VANC ancillary data processing:

• Closed captioning (CC) embedded in VANC processing as CEA-608/708
• Vertical interval timecode (RP-188)
• HDR and colorimetry metadata

- Audio Input:

• Digital:

     16x channels of embedded SDI audio is supported per input, and 8x channels of audio support per encode using SRT or MPEG2 TS.

• Analog:

    2x channels of balanced analog audio input via XLR connector*
               Line Level

*Available via optional audio cable

- Audio Output:

• Digital:

      8x channels of embedded audio support per SDI output.

• Analog:

     2x channels of balanced analog audio output via XLR connector*

     1 channel of unbalanced stereo audio output via 1/8” TRS connecto

*Available via optional audio cable

- Confidence Preview: 1x DisplayPort 1.1 (Maximum resolution: 1920x1080)

- Color Space and Chroma Sub-Sampling: 4:2:0 (8-bit and 10-bit); 4:2:2 (8-bit and 10-bit)

- Frame Synchronization

- Video Scaling: High Quality multi-tap 10 bit Up/Down Scaler and De-Interlacer

- Audio Sampling Frequency: 48 kHz when digitized from analog source

- Audio Bitrates: Range from 32 kbps to 256 kbps

- Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)

- Encoding Profiles: Up to High 4:2:2 profile (Hi422P)

- Encoder Bitrates Range: Video: Up to 120 Mbps

- Streaming Protocols: MPEG-2 TS over UDP (unicast or multicast); RTP/RTSP; Native RTP* (unicast or multicast); SRT (Caller, Listener and Rendez-Vous modes); RTMP (encoder only)

- Additional Features:

- Tally/GPIO

•    When paired with another MDG2/ED/10, up to 4x tally/GPIO signals can be sent in either direction simultaneously
•    Tally/GPIO ports available via a 15 Position Pin D-Sub Standard Connector*

* This feature is offered via a 15 Position Pin D-Sub Standard Connector. With the help of a Pinout diagram, a cable can be assembled to interface to any tally output interface on the vision mixer.

   Tài liệu kỹ thuật:https://www.matrox.com/sites/default/files/monarch_edge_remote_production_datasheet_2021.pdf

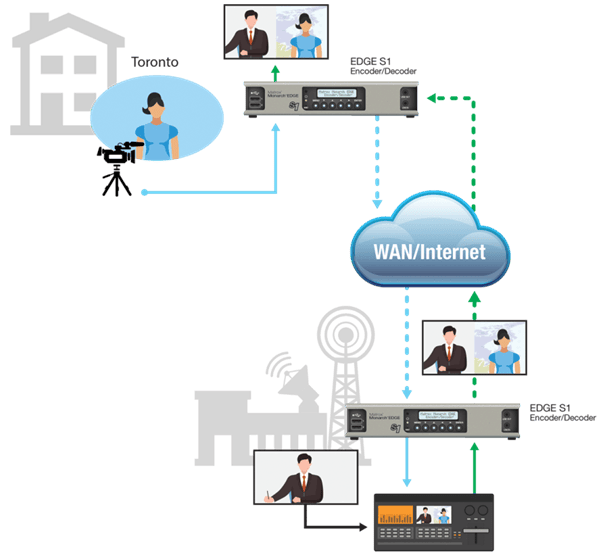

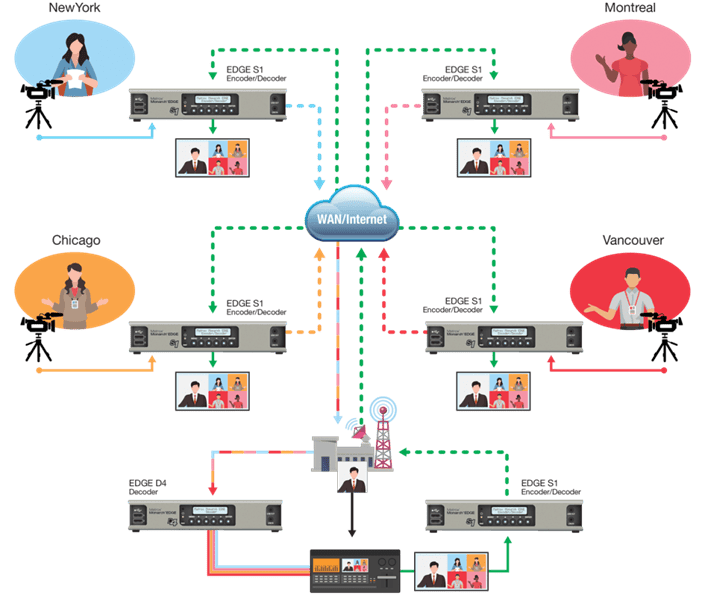

   Sơ đồ đấu nối:
