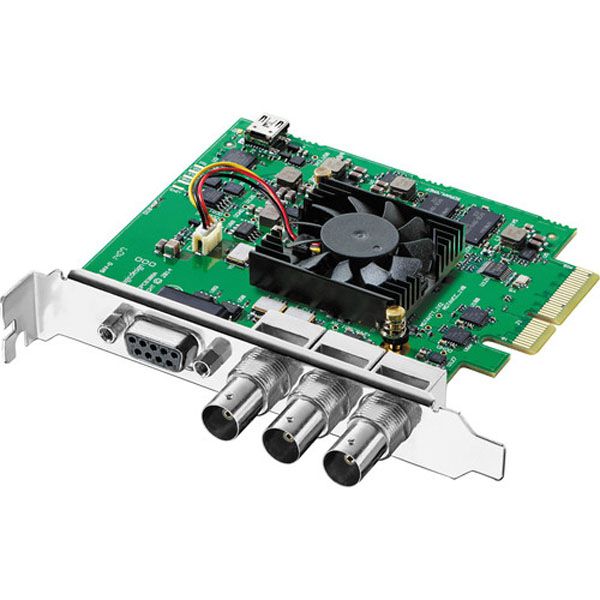

DeckLink SDI 4K (Blackmagic)
Thông tin thiết bị
Mã sản phẩm:
Hãng sản xuất:
Card capture & playback DeckLink SDI
Card DeckLink SDI 4K hỗ trợ capture & playback tín hiệu SDI độ phân giải UHD 4K (3840x2160) và DCI 4K (4096x2160).
- Khe cắm PCIe, tương thích với hệ điều hàng Mac, Windows, Linux chạy trên workstation hoặc server.
- 10 bit 4:2:2 UHD 4K hoặc DCI 4K single-link 6G-SDI
- 10 bit 4:4:4 1080p single-link 6G-SDI
- Chuyển đổi SD-HD up/down/cross
- Hỗ trợ 16 kênh âm thanh nhúng (audio embedded)
Thông số kỹ thuật
SDI Video Input | 1 x 10-bit 6G-SDI |
SDI Video Output | 1 x 10-bit 6G-SDI |
SDI Audio Input | 16 Channels embedded in HD, 2K, and 4K; 8 Channels embedded in SD |
SDI Audio Output | 16 Channels embedded in HD, 2K, and 4K; 8 Channels embedded in SD |
Sync Input | Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K, or UHD format |
Device Control | RS-422 deck control port (Sony-compatible) |
Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8, and 16 lane PCIe slots |
Codecs Supported | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4 |
Format Support | SD |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601 |
SDI Metadata Support | VITC read for 3:2 pulldown removal |
Audio Sampling | 24-bit, 48 kHz |
Video Sampling | 4:2:2 and 4:4:4 (4K is 4:2:2) |
Color Precision | 10-bit |
Color Space | REC 601, REC 709 |
Multiple Rate Support | SDI video connections are switchable between SD, HD, 3G, and 6G formats |
Colorspace Conversion | Hardware based, real-time |
HD Down Conversion | Built in, hardware down converter outputs HD or SD on SDI output |
HD Up Conversion | Built in, hardware up conversion from SD to 720HD or 1080HD on playback. |
Cross Conversion | Built-in, high-quality hardware cross conversion from 1280x720 to 1920x1080 and 1920x1080 to 1280x720 on playback |
Real-Time Effects | Apple Final Cut Pro internal effects |
Supported Operating Systems | Mac OS X 10.8 Mountain Lion, Max OS X 10.9 Mavericks or later |
Supported Applications | Apple Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster |
Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X |
Internal Software Upgrade | Firmware built into software driver; loaded at system start or via updater software |
EMC certifications | FCC, CE and C-Tick |
Operating Temperature | 32 to 104° F (5 to 40°C) |
Storage Temperature | -4 to 113°F (-20 to 45°C) |
Relative Humidity | 0 to 90%, non-condensing |
Length | 3.75" (9.525 cm) |
Weight | 4.5 oz (127.6 g) |
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 5.5 x 5.3 x 1.1" |
