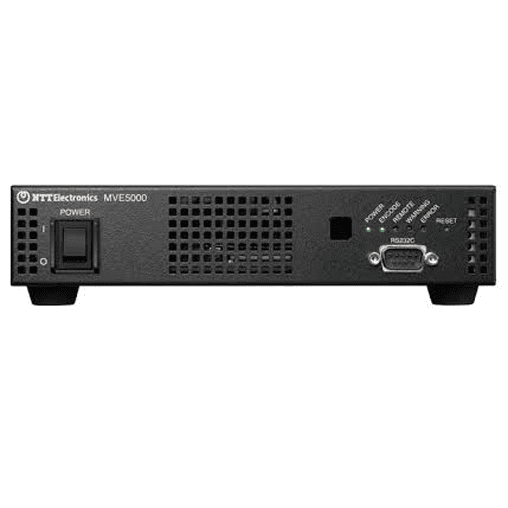

H.264/AVC Compact IP Encoder
Thông tin thiết bị
Mã sản phẩm:
Hãng sản xuất:
Chất lượng hình ảnh cao, Độ trễ siêu thấp và Tốc độ bit thấp với kích thước Half-Rack 1U để truyền IP
- NTT Electronics' High Performance In-House Single Chip LSI
- Inherits the high picture quality cultivated by contribution applications
- 1 and 3 Frame Super Low Latency (Encoder optional *2 *4 )
- Multiple Interface
- Video I/O: HD/SD-SDI, HDMI, Analog Composite (Analog Model)
- Audio I/O: SDI embedded Audio, HDMI embedded Audio, Analog (Analog Model)
- Stream I/O: IP (100Base-TX/1000Base-T), DVB-ASI (ASI Model)
- Seamless Protection Switching for IP input (optional *3)
- Seamless Video Rate Change (optional *7)
- Network Function
- Simultaneous outputs for redundancy (Encoder)
- Supports IPv4/v6, FEC, ARQ which enables high quality video transmission using IP network
- Compact 1U Half-rack
- TS Pass Through (optional *6)
- Quick Boot up
- RoHS Compliant
*A : Maximum 2PES is supported only for MPEG-1 Audio Layer II and SMPTE302M. (Stereo x 2)
Option Table (MVE5000 (Encoder)) (Software Options)
Suffix | Option Name | Description | |
*1 | MVE5000_OP_AAC | MPEG-2 AAC-LC(2ch x 1, 5.1ch x 1) | |
*2 | MVE5000_OP_SLDELAY | Super Low Latency Mode(3 frames) | |
*3 | Basic Pack | Operation parameter +8 preset, SMPTE302M(2ch), Dolby E Pass through, Seamless Protection, SDI Monitoring, Superimpose Setting Extension, GOP Structure Setting Extension, Video Format (576i: 352x288, 480i: 352x240), NIT/SDT, Auto Preset Selection by Input Video, Web GUI (lightweight operating mode, access control, port number setting), Syslog, Low TS Rate Support, Encode Filter Setting Extension, Serial Pass-Through Setting Extension, SD Video Aspect Ratio Setting | |
| *4 | MVE5000_OP_PACK_ULDELAY | Ultra Low Latency Mode(1 frame)(Including MVE5000_OP_SLDELAY) |
*5 | MVE5000_OP_PACK_SAP | Session Announcement Protocol(SAP) | |
*6 | MVE5000_OP_PACK_TS-PASS | TS Pass Through | |
*7 | MVE5000_OP_PACK_SBRC | Seamless Video Rate Change | |
(Note 1) Basic Pack (*3) is included in *4, *5, *6, *7.
Xem thêm: https://www.ntt-electronics.com/en/products/video/codec_system_solutions/mv5000/index.html
